Recommended Equipment

Off-the-shelf parts I recommend for a home snowmaking setup. Snowseed does not sell these. Example links go to Amazon; any part of the same type and size works.

The Air Line

Compressor to snowgun with off-the-shelf parts. The camlock fittings let the line connect and disconnect by hand, no tools.

  1. CompressorYour air supply
  2. Blowout AdapterQuick-connect to hose thread
  3. Zero-G HoseThe air line
  4. Camlock AdapterHose thread to camlock
  5. Locking CamlockSnaps onto the snowgun
  6. Snowgun Air Port3/4" NPT on the Garnet AI1 and Nepaug IM

Air Line Parts

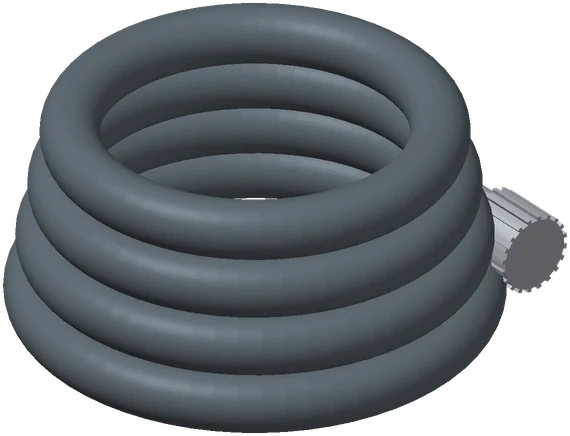

3D illustration: Zero-G Garden Hose

Recommended: Teknor Apex Zero-G

Zero-G Garden Hose

My pick for the air line. Light, flexible, and it does not kink when you drag it across a cold yard.

  • 5/8" Garden Hose, 25, 50 or 100 ft

$50–$90Estimated

View on Amazon

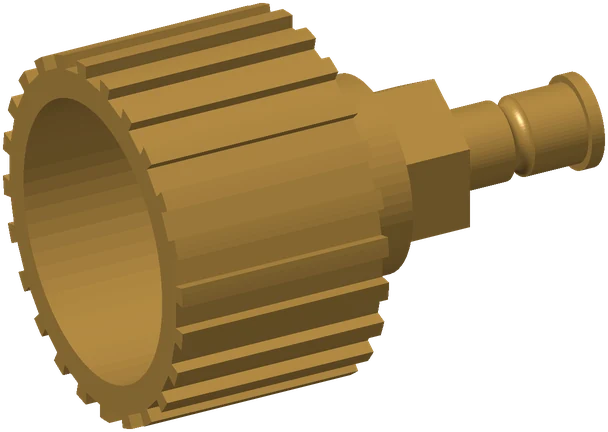

3D illustration: Garden Hose Blowout Adapter

Air Line

Garden Hose Blowout Adapter

Threads onto the hose and takes your compressor’s quick-connect, so a garden hose becomes the air line.

  • Garden Hose Thread × Air Quick-Connect

$8–$15Estimated

See an Example

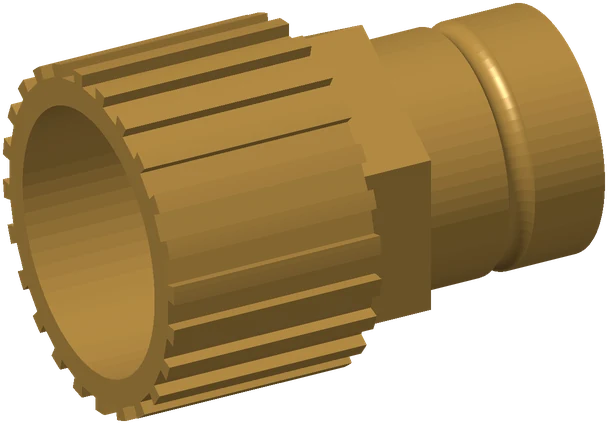

3D illustration: 3/4" Camlock to Garden Hose Adapter

Air Line

3/4" Camlock to Garden Hose Adapter

Converts the garden hose end to camlock, so the air line snaps on and off the snowgun.

  • Garden Hose Thread × 3/4" Camlock

$10–$18Estimated

See an Example

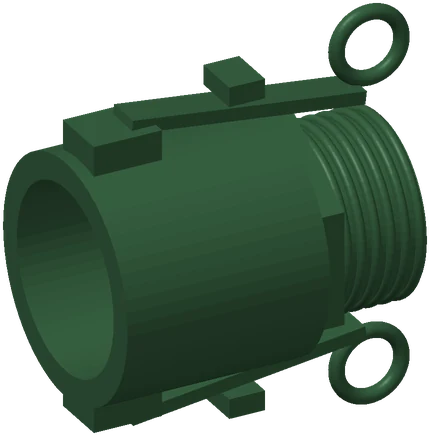

3D illustration: 3/4" Locking Cam Coupler

Air Line

3/4" Locking Cam Coupler

Locking cam coupler at the snowgun. The lock keeps it from popping off under air pressure.

  • 3/4" Locking Cam Coupler, Poly

$10–$20Estimated

See an Example

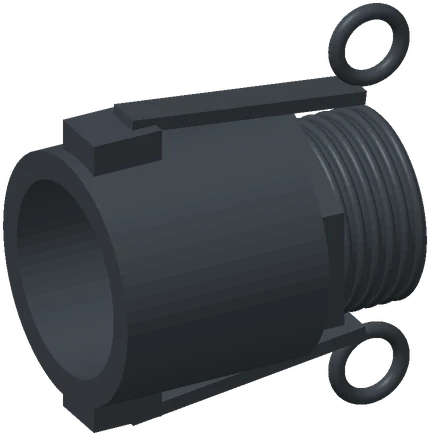

3D illustration: 3/4" Female Camlock Fitting

Air Line

3/4" Female Camlock Fitting

The matching camlock half for the snowgun end of the air line.

  • 3/4" Female Camlock, Poly

$8–$15Estimated

See an Example

High Pressure Water

Pump to snowgun.

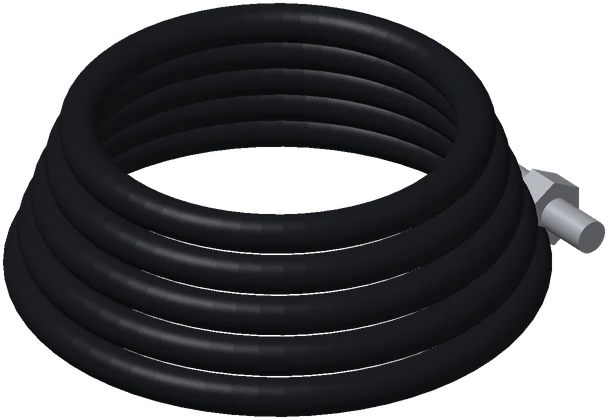

3D illustration: 3/8" Non-Marking High Pressure Hose

High Pressure Water

3/8" Non-Marking High Pressure Hose

Pump to snowgun. Non-marking, pressure washer style, rated well above the pressure you run.

  • 3/8" Hose, Quick-Connect Ends

$40–$90Estimated

See an Example

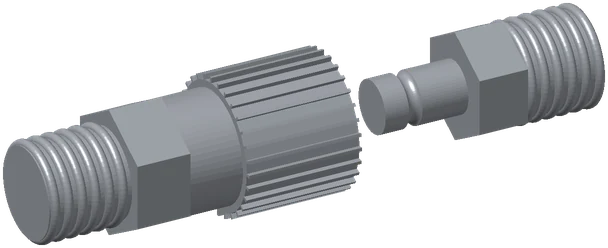

3D illustration: 3/8" Stainless Quick-Connect Fittings

High Pressure Water

3/8" Stainless Quick-Connect Fittings

So the high pressure line snaps on and off the pump and the snowgun.

  • 3/8" Quick-Connect Set, Stainless

$15–$25Estimated

See an Example

Low Pressure Water

Spigot or supply to the pump inlet.

3D illustration: Zero-G Garden Hose

Recommended: Teknor Apex Zero-G

Zero-G Garden Hose

My pick for supply water too. Spigot to pump, light and kink-free.

  • 5/8" Garden Hose, 25, 50 or 100 ft

$50–$90Estimated

View on Amazon

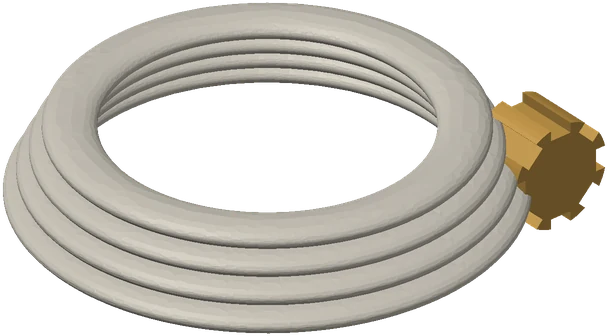

3D illustration: 1" ID Double Jacket Supply Hose

Low Pressure Water

1" ID Double Jacket Supply Hose

Spigot to pump. A full 1" bore gives the pump all the supply water it can use.

  • 1" ID, Double Jacket, Garden Hose Thread

$40–$80Estimated

See an Example

Prices are estimates and change often. Check the listing for today’s price. Images are 3D illustrations of each part type, not product photos.

More Coming

Pumps, compressors, and nozzles will be added here. Sizing them? Use the Nozzle Number Calculator, Pump Horsepower Calculator, and Pulley & Belt Calculator.
