Water Enters the Top
High pressure water lands on the 1/2" NPT port on top and is metered inside the block. Run it at 650 to 1,200 psi, 1 to 10 GPM.
Front and top. Water lands on top; the nozzle threads into the front.
Equipment › SS - Nepaug IM
Inline Nucleator Manifold
SS - Nepaug IM
One small machined block. High pressure water in the top, compressed air in the back, nucleation nozzle out the front.
$120Opening price
Coming Soon- Water
- 650–1,200 psi
- Flow
- 1–10 GPM
- Air
- 4–7 CFM @ 90 psi
- Ports
- 1/2" · 3/4" · 1/4" NPT
- Designed, machined, and tested in Connecticut
- Standard female NPT on every port
- Solid 6061 aluminum, one piece
- Setup help by phone, and late-night help when I can. Support
Sizing your home snowmaking setup? Nozzle Planner · Pump Horsepower · Can I Make Snow Today?
Three Ports, Three JobsWater from above, air from behind, mix out the front. Nothing else to plumb.
Solid 6061 AluminumOne machined piece. No seams, no seals between stages, nothing to work loose in the cold.
Standard NPT1/2", 3/4", and 1/4" female NPT. Hardware-store fittings, no adapters.

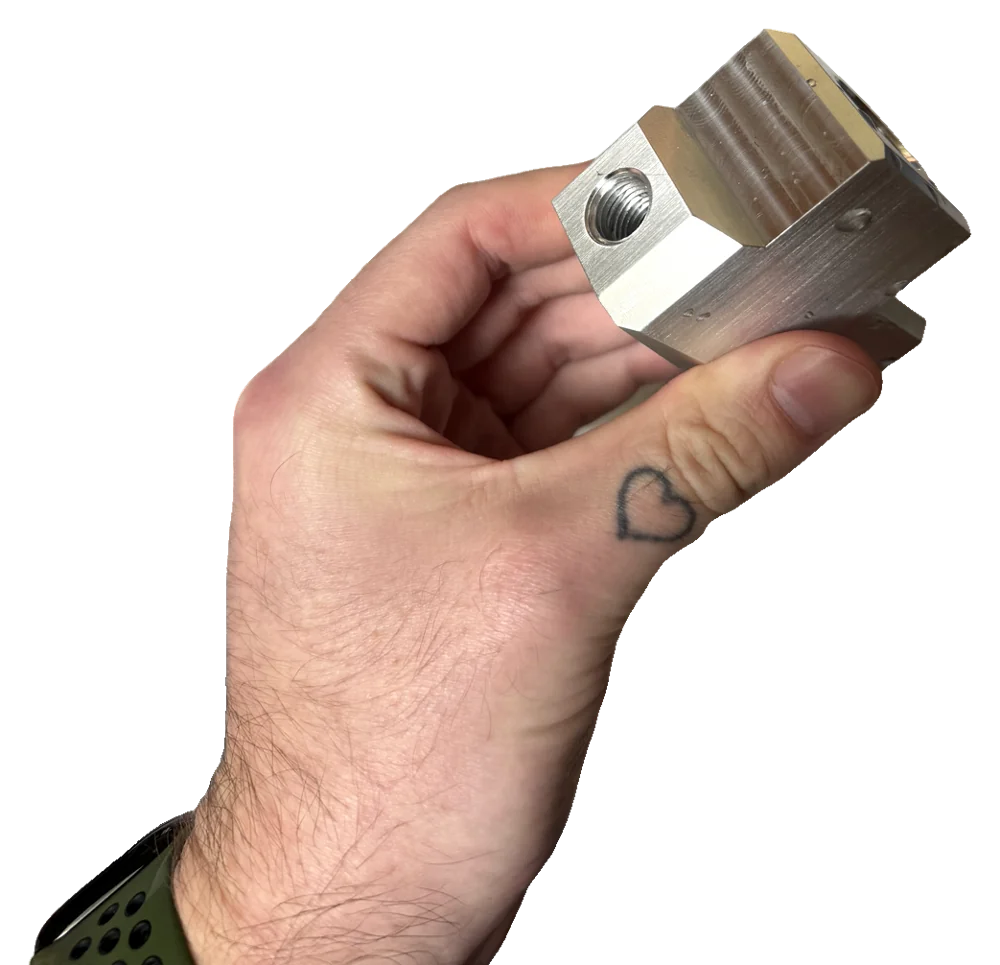

Fits in Your PalmSmall enough to mount where you need the nucleation, not where the hardware forces you.
How It Plumbs

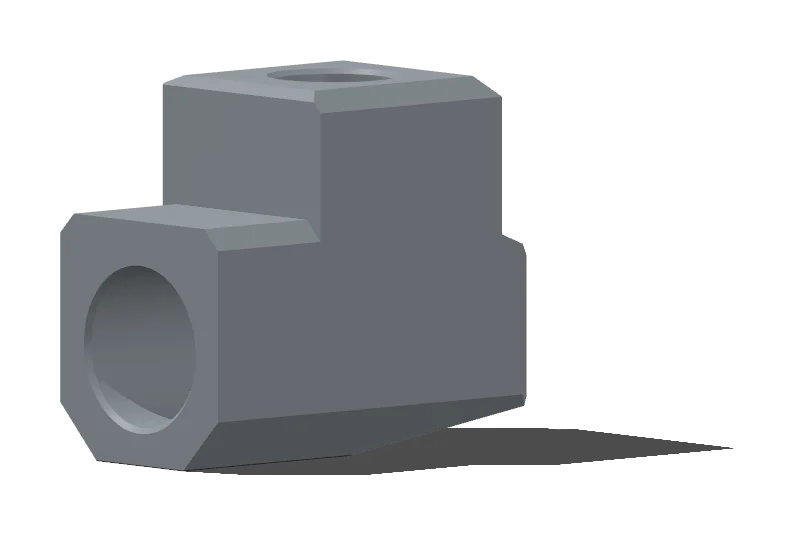

Air Enters the Back
Compressed air comes in through the 3/4" NPT port on the back. 4 to 7 CFM at 90 psi. Air and water meet inside the block.
Nucleation Exits the Front

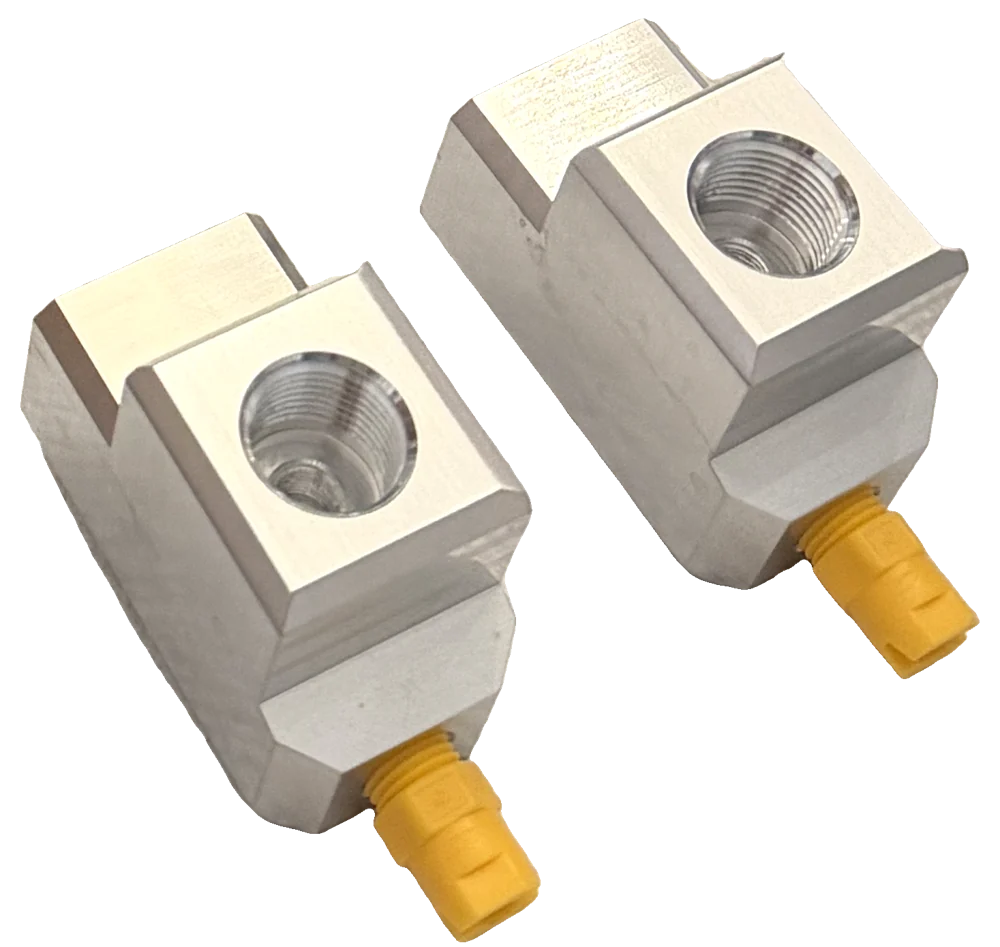

The mix leaves through your nucleation nozzle, threaded into the 1/4" NPT port on the front face. Nozzles are not included; the photo shows them fitted so you can see where they go.
What You Get

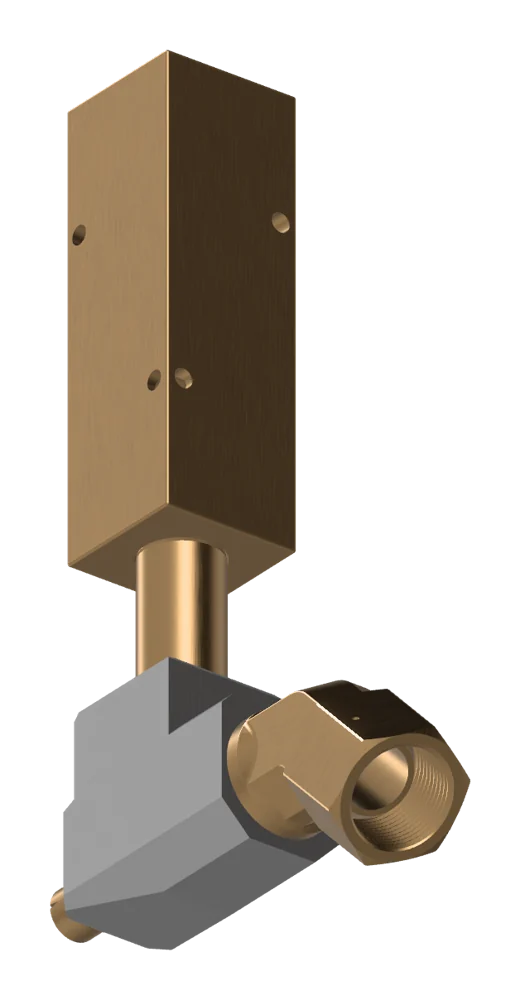

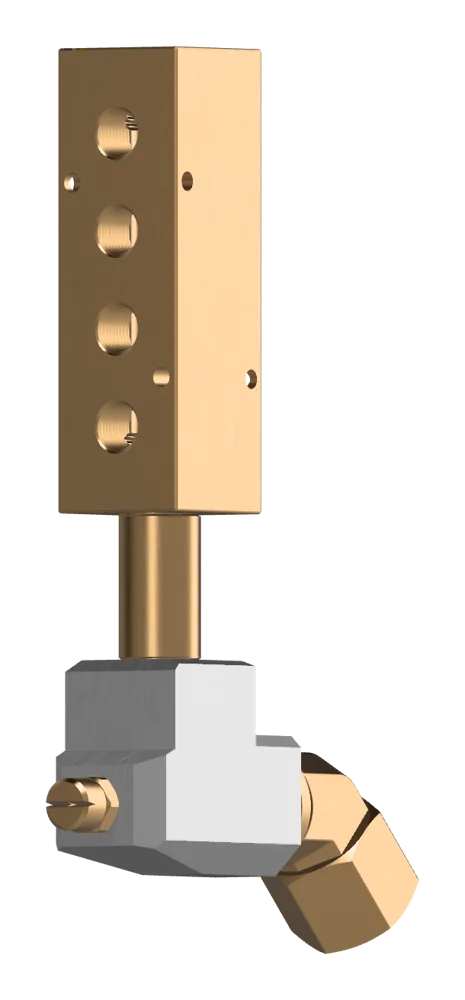

The Nepaug IM is the silver block only. In this render the gold parts show how the block sits in a working setup. They are not part of the product.
Specifications
Water
- Port
- 1/2" NPT, top
- Pressure
- 650–1,200 psi
- Flow
- 1–10 GPM
Air
- Port
- 3/4" NPT, back
- Supply
- 4–7 CFM at 90 psi
Output
- Port
- 1/4" NPT, front
- Takes
- One nucleation nozzle (not included)
Body
- Material
- 6061 aluminum
- Construction
- Single machined piece
- Threads
- Female NPT, every port
Exterior views only. Internal passages are not shown.
Questions
What Do I Need to Run It?
A high pressure pump that makes 650 to 1,200 psi at 1 to 10 GPM, and a compressor that delivers 4 to 7 CFM at 90 psi. The pump horsepower calculator sizes the motor.
What Fittings Does It Take?
Standard female NPT: 1/2" for water, 3/4" for air, 1/4" for the nozzle. Nothing proprietary.
Is a Nozzle Included?
No. The Nepaug IM is the machined block only.
Is There Support?
Yes. Call for help with your initial setup. I do my best to be on call for late-night snowmaking issues. Help, experience, and advice are part of the price. More on support.
When Will It Ship?
When testing is done. Put your email in above and you get one email the day it does.
Compare
| Garnet AI1 | Nepaug IM | |
|---|---|---|
| What It Is | All-in-one internal mix block: nucleation plus bulk water | Inline nucleator manifold |
| Outlets | 4 bulk water + 1 nucleation, 1/4" NPT | 1 nucleation, 1/4" NPT |
| Water Inlet | 3/8" NPT | 1/2" NPT, from the top |
| Air Inlet | 3/4" NPT | 3/4" NPT, from the back |
| Water | 650–1,200 psi, 1–13 GPM | 650–1,200 psi, 1–10 GPM |
| Air | 3–7 CFM at 90 psi | 4–7 CFM at 90 psi |
| Body | 6061-T6 aluminum, one piece | 6061 aluminum, one piece |
| Opening Price | $850 | $120 |
